SWG 25 Fiberglass Steel Braided High Temperature Thermocouple Extension Wire K Type

Name: SWG 25 Fiberglass Steel Braided High Temperature Thermocouple Extension Wire K Type
Brand: OHMALLOY
Price: 1 USD

Quality SWG 25 Fiberglass Steel Braided High Temperature Thermocouple Extension Wire K Type wholesale

Brand Name : OHMALLOY

Model Number : K -TW-122

Certification : ISO9001-2008

Place of Origin : China(Shanghai)

MOQ : 100meters

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 500000meters/month

Delivery Time : 7-15 days

Packaging Details : 100m/spool, 500m/roll,1000ft/roll

Conductor : +Chromel/ -Alumel

Conductor dia : SWG 25

Insulation material : PVC/FEP/PFA/ Fiberglass/Vitreous silica

Jacket material : PVC/FEP/PFA/ Fiberglass/Vitreous silica

Color : Conforms to ANSI, IEC, JIS

Package : 100m/roll. 500m/roll,1000ft/roll

Standard : ANSI96.1 or IEC 584-2

Contact Now

SWG 25 Fiberglass Steel Braid K Type High Temperature Thermocouple Extension Wire
Specification:
Conductors: Solid or stranded thermocouple wire per
Insulation: Braided fiberglass,PVC, PTFE, Silicon
Construction: Parallel conductors
Jacket: PVC/FEP/PFA/ Fiberglass/Vitreous silica
Limits of Error: Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Type: K, E, J, T, N, etc.
Style: Solid or stranded, parallel or twisted

Conductor material:

Variety	Type
NiCr-NiSi	K
NiCr-CuNi	E
Fe-CuNi	J
Cu-CuNi	T
NiCrSi-NiSi	N
NiCr-AuFe0.07	NiCr-AuFe0.07

Insulating and sheath material:

insulation	PTFE	PFA	TEF	FEP	PVC	FG	silicone	kapton	Quartz fiber
Max temp(°c)	260	260	200	200	108	400	200	400	800

Normal available condutor size:

Solid type	0.2mm	0.3mm	0.5mm	0.8mm	1.0mm	1.13mm	1.29mm	1.37mm
Stranded type	0.2mm*7	0.3mm*7	0.43mm*7	0.52mm*7	0.67mm*7

Note: We also can make the speical size as per client’s requirement. SWG/AWG also is available

Produce Video:

https://www.youtube.com/watch?v=BqSjyC15Jk4

Products& Package:

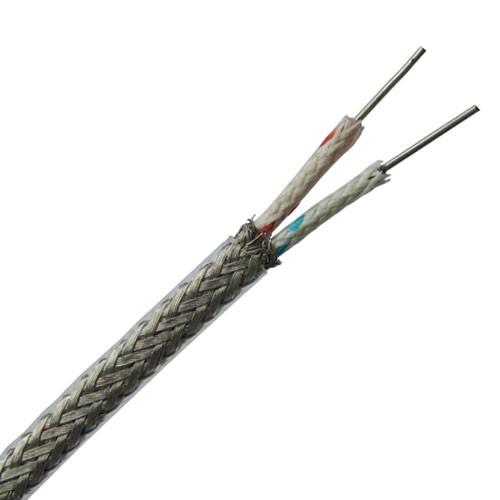

SWG 25 Fiberglass Steel Braided High Temperature Thermocouple Extension Wire K Type
